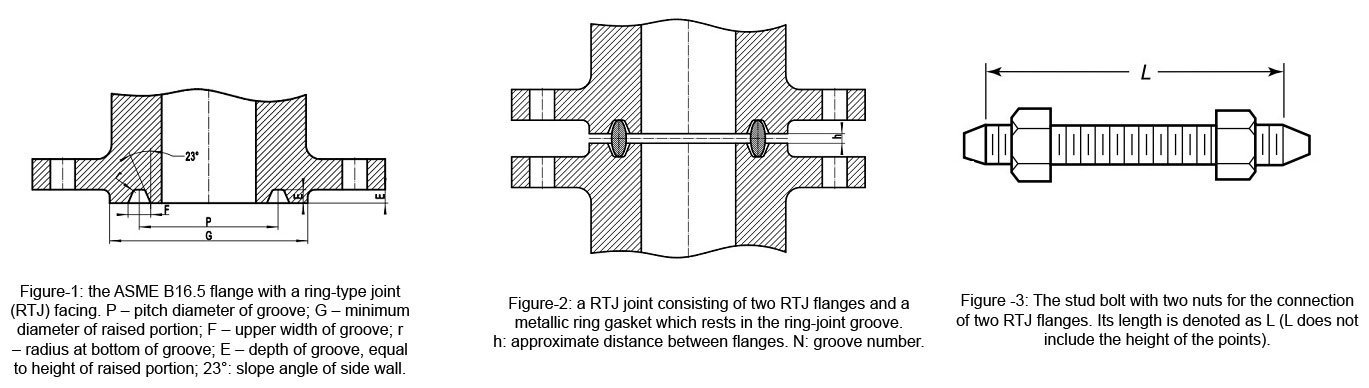

ASME B16.5 Class 400 RTJ Facing Flanges Dimensions and Technical Drawings DOWNLOAD ASME B16.5 CLASS 400 RTJ FACING FLANGES DIMENSIONS AND TECHNICAL DRAWINGS PDF Get Complete details of ANSI/ASME/ASA B16.5 Standard Flange 400# B16.5 Flanges Dimensions RTJ Facing Dimensions in MM NPS Groove No. P E F 1/2 11 34.14 5.54 7.14 3/4 13 42.88 6.35 8.74 1 16 50.80 6.35 8.74 1-1/4 18 60.33 6.35 8.74 1-1/2 20 68.27 6.35 8.74 2 23 82.55 7.92 11.91 2-1/2 26 101.60 7.92 11.91 3 30 117.48 7.92 11.91 3-1/2 34 131.78 7.92 11.91 4 37 149.23 7.92 11.91 5 41 180.98 7.92 11.91 6 45 211.12 7.92 11.91 8 49 269.88 7.92 11.91 10 53 323.85 7.92 11.91 12 57 381.00 7.92 11.91 14 61 419.10 7.92 11.91 16 65 469.90 7.92 11.91 18 69 533.40 7.92 11.91 20 73 584.20 9.53 13.49 22 81 635.00 11.13 15.09 24 77 692.15 11.13 16.66 NPS r G h L 1/2 0.8 51.0 3 75 3/4 0.8 63.5 4 90 1 0.8 70.0 4 90 1-1/4 0.8 79.5 4 95 1-1/2 0.8 90.5 4 110 2 0.8 108 5 110 2-1/2 0.8 127 5 120 3 0.8 146 5 125 3-1/2 0.8 159 5 140 4 0.8 175 6 140 5 0.8 210 6 145 6 0.8 241 6 150 8 0.8 302 6 170 10 0.8 356 6 190 12 0.8 413 6 205 14 0.8 457 6 210 16 0.8 508 6 220 18 0.8 575 6 230 20 1.5 635 6 250 22 1.5 686 6 260 24 1.5 749 6 280 ASME B16.5 Class 400 Flanges Industries and Applications Widely used in the industries Pumps, Valves, and vessels in manufacturing and food processing. Pipe connections in industrial waterworks. Heat exchangers and heating systems of all sizes. Mining support. Nuclear…
