Description

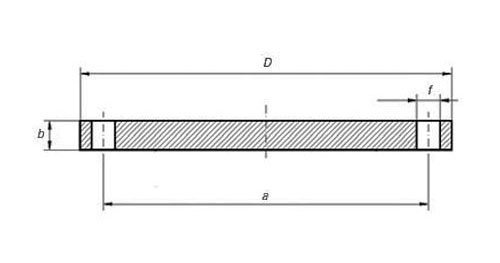

UNI 6093 PN16 Blind Flange Dimensions and Technical Drawing DOWNLOAD UNI 6093 PN16 Blind Flange Dimensions and Technical Drawing PDF Get Complete details of UNI Flange Standard UNI 6093 PN16 Blind Flange Dimensions Dimensions and Weight UNI 6093 Pn16 Blind Flange Dimensions Rated Dia. a b D f No. of holes Thread of the screws Weight in Kilogram 15 65 14 95 14 4 M 12 0,71 20 75 16 105 14 4 M 12 1,01 25 85 16 115 14 4 M 12 1,22 32 100 16 140 18 4 M 16 1,80 40 110 16 150 18 4 M 16 2,09 50 125 18 165 18 4 M 16 2,87 65 145 18 185 18 4 M 16 3,65 80 160 20 200 18 8** M 16 4,61 100 180 20 220 18 8 M 16 5,65 125 210 22 250 18 8 M 16 8,12 150 240 22 285 22 8 M 20 10,5 175 270 24 315 22 8 M 20 14,1 200 295 24 340 22 12 M 20 16,2 250 355 26 405 25 12 M 22 25,1 300 410 28 460 25 12 M 22 35,2 350 470 30 520 25 16 M 22 48,2 400 525 32 580 30 16 M 27 63,5 450 585 32 640 30 20 M 27 77,2 500 650 34 715 33 20 M 30 102 UNI 6093 PN16 Blind Flange Industries and Applications Widely used in the industries Pumps, Valves, and vessels in manufacturing and food processing. Pipe connections in industrial waterworks. Heat exchangers and heating systems of all sizes. Mining support. Nuclear power systems. Plumbing and mechanical systems. Assemblies in the oil, gas, and petrochemical industries. Fire protection systems. UNI 6093 PN16 Blind Flange Supply and Export Network List of Cities and Countries A-C D-J…
