Description

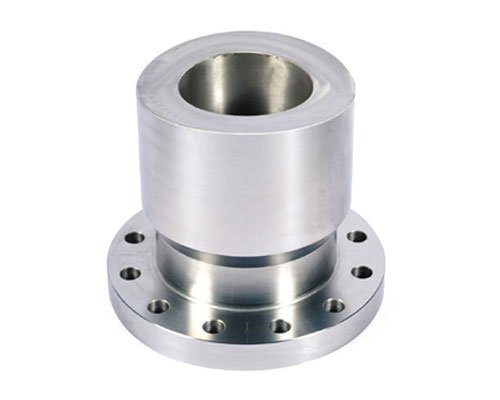

Specialized Nozzle Flanges Manufacturer, ASME B16.47 / ANSI B16.5 Nozzle Flange Dimensions, V Nozzle Flange All pressure vessel must be furnished with nozzle flange and connections. The end of nozzles is to connect the pressure vessel with the rest of the process. The most typical practice to join Nozzle Flanges and Pipelines are to use standard flange, this ensure perfect match at assembly and construction stages. To attach a nozzle in a pressure vessel, it's necessary to make a hole in the shell or head body in question. When making this hole, an area of the vessel is being “ taken away”, thus stress paths are going to divert parenthetically to the hole. Therefore, we must “ substitute” the removed area by adding underpinning within the limits. It should be noted that installing nozzle flange in pressure vessel involve geometric discontinuity that must be taken into accounts in calculations. Accordingly, every system that could be applied to reduce being stresses is welcome. One of the most generally used methods consists in removing stress concentrates by means of rounding sharp edges. This publication discusses about flanges nozzles that are more susceptible to fluid leakage than welded nozzles. A flanges nozzle consists of the three main elements flange, neck and reinforcement. The Variables Body Type V1, V2, and V3 Neck, V Nozzle flanges connections add another reinforcement beyond that of Transitional V1, V2 & V3 connection options. The “ V” has a barrel wall density equal to the outside radius of the mating flange. These particulars are made to order and can be supplied with lengths of any size to supply the offset demanded. These connections are always supplied with “ Nut Stop” unless “ Nut Relief” are requested. The inside radius of these connections for 12” and below are supplied with…
