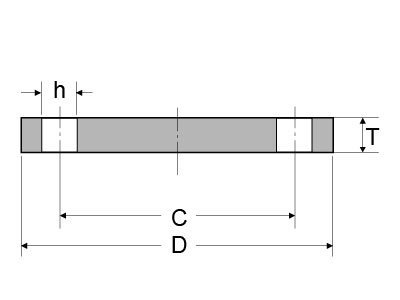

EN1092-1 PN16 Type 05 Blind Flange Dimensions and Technical Drawing DOWNLOAD EN1092-1 PN16 Type 05 Blind Flange Dimensions and Technical Drawing PDF Get Complete details of EN 1092-1 Flange Standard EN1092-1 PN16 Type 05 Blind Flange Dimensions Dimensions and Weight Rated Diameter Flange Dimension Screws Parameter Weight Flange C D T h Thread Bolt holes KG/PCS 15 65 95 16 14 M12 4 0,813 20 75 105 18 14 M12 4 1,140 25 85 115 18 14 M12 4 1,380 32 100 140 18 18 M16 4 2,030 40 110 150 18 18 M16 4 2,350 50 125 165 18 18 M16 4 2,880 65 145 185 18 18 M16 4 3,643 80 160 200 20 18 M16 8 4,610 100 180 220 20 18 M16 8 5,650 125 210 250 22 18 M16 8 8,130 150 240 285 22 22 M20 8 10,500 200 295 340 24 22 M20 12 16,200 250 355 405 26 26 M24 12 25,000 300 410 460 28 26 M24 12 35,100 350 470 520 30 26 M24 16 48,000 400 525 580 32 30 M27 16 63,500 450 585 640 40 30 M27 20 96,600 500 650 715 44 33 M30 20 133,000 600 770 840 54 36 M33 20 226,000 700 840 910 58 36 M33 24 285,000 800 950 1025 62 39 M36 24 388,000 900 1050 1125 64 39 M36 28 483,000 1000 1170 1255 68 42 M39 28 640,000 EN1092-1 PN16 Type 05 Blind Flange Industries and Applications Widely used in the industries Pumps, Valves, and vessels in manufacturing and food processing. Pipe connections in industrial waterworks. Heat exchangers and heating systems of all sizes. Mining support. Nuclear power systems. Plumbing and mechanical systems. Assemblies in the oil, gas, and petrochemical industries. Fire protection systems. EN1092-1 PN16 Type 05…
