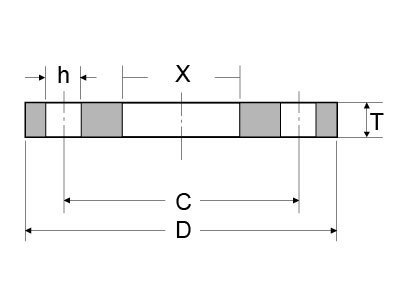

EN1092-1 PN10 Type 01 Plate Flange Dimensions and Technical Drawing DOWNLOAD EN1092-1 PN10 Type 01 Plate Flange Dimensions and Technical Drawing PDF Get Complete details of EN 1092-1 Flange Standard EN1092-1 PN10 Type 01 Plate Flange Dimensions Dimensions and Weight Rated Diameter Pipe Flange Screws Weight/KG Flange X C D T h Thread Bolt holes KG 200 219,1 221,5 295 340 24 22 M20 8 9,244 250 273,0 276,5 350 395 26 22 M20 12 11,788 300 323,9 327,5 400 445 26 22 M20 12 13,578 350 355,6 359,5 460 505 30 22 M20 16 21,766 400 406,4 411,0 515 565 32 26 M24 16 27,436 450 457,2 462,0 565 615 36 26 M24 20 33,470 500 508,0 513,5 620 670 38 26 M24 20 40,103 600 610,0 616,5 725 780 42 30 M27 20 54,297 700 711,0 714,2 840 895 50 30 M27 24 82,777 800 813,0 815,8 950 1015 56 33 M30 24 116,534 900 914,0 917,4 1050 1115 62 33 M30 28 141,425 1000 1016,0 1019,0 1160 1230 70 36 M33 28 188,561 1200 1219,0 1224,0 1380 1455 83 39 M36 32 290,884 EN1092-1 PN10 Type 01 Plate Flange Industries and Applications Widely used in the industries Pumps, Valves, and vessels in manufacturing and food processing. Pipe connections in industrial waterworks. Heat exchangers and heating systems of all sizes. Mining support. Nuclear power systems. Plumbing and mechanical systems. Assemblies in the oil, gas, and petrochemical industries. Fire protection systems. EN1092-1 PN10 Type 01 Plate Flange Supply and Export Network List of Cities and Countries A-C D-J K-R S-Z Afghanistan Algeria Angola Argentina Australia Austria Azerbaijan Bahrain Bangladesh Belarus Belgium Bhutan Bolivia Brazil Bulgaria Canada Chile China Colombia Costa Rica Croatia Czech Republic Aberdeen Abu Dhabi Ahmedabad Ahvaz Al Jubail Al Khobar Algiers Ankara Atyrau Bangkok Bengaluru Bhopal…
