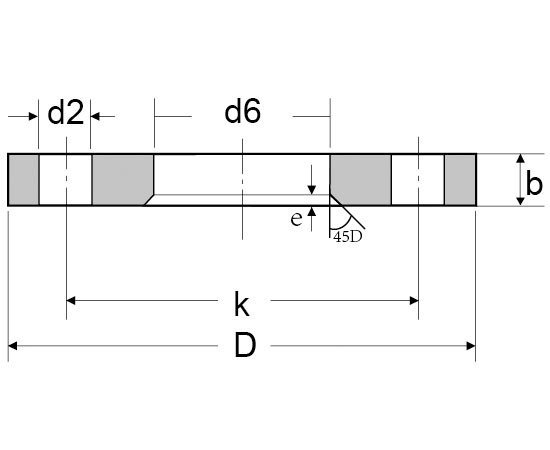

DIN 2641 PN6 Lapped Flange Dimensions, Technical Drawings, and Approx. Flange Weight DOWNLOAD DIN 2641 PN6 LAPPED FLANGE DIMENSIONS, TECHNICAL DRAWINGS, AND APPROX. FLANGE WEIGHT PDF Get Complete details of DIN Standard Flanges DIN 2641 PN6 Lapped Flange Dimensions Dimensions and Approx. Flange Weight Pipe Parameter Flange Dimension Screw Dimension Flange Weight DN ISO DIN D d6 b k e No. of holes d2 KG/PCS 10 – 14 75 16 10 50 2 4 11 0.3 17.2 – 75 19 10 50 2 4 11 0.29 15 – 20 80 22 10 55 2 4 11 0.33 21.3 – 80 24 10 55 2 4 11 0.33 20 – 25 90 28 10 65 2 4 11 0.42 26.9 – 90 30 10 65 2 4 11 0.41 25 – 30 100 33 12 75 3 4 11 0.62 33.7 – 100 36 12 75 3 4 11 0.61 32 – 38 120 42 12 90 3 4 14 0.88 42.4 – 120 46 12 90 3 4 14 0.85 40 – 44.5 130 50 12 100 3 4 14 1.01 48.3 – 130 54 12 100 3 4 14 0.98 50 – 57 140 62 12 110 3 4 14 1.11 60.3 – 140 65 12 110 3 4 14 1.08 65 76.1 – 160 81 12 130 3 4 14 1.35 80 88.9 – 190 94 14 150 3 4 18 2.24 100 – 108 210 113 14 170 3 4 18 2.59 114.3 – 210 119 14 170 3 4 18 2.47 125 – 133 240 138 14 200 3 8 18 3.1 139.7 – 240 145 14 200 3 8 18 2.93 150 – 159 265 164 14 225 3 8 18 3.52 168.3 – 265 173 14 225 3 8 18 3.25 200 219.1 -…
