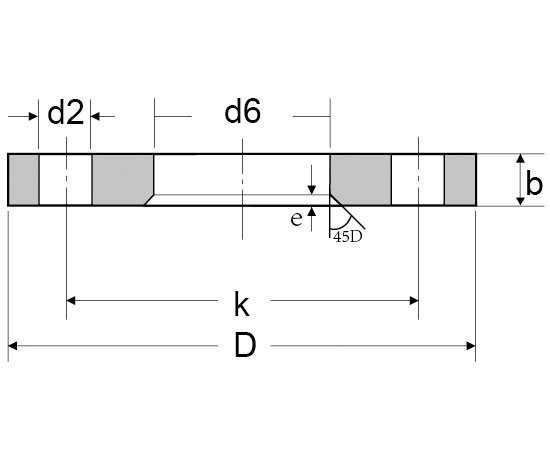

DIN 2642 PN10 Lapped Flange Dimensions, Technical Drawings, and Approx. Flange Weight DOWNLOAD DIN 2642 PN10 LAPPED FLANGE DIMENSIONS, TECHNICAL DRAWINGS, AND APPROX. FLANGE WEIGHT PDF Get Complete details of DIN Standard Flanges DIN 2642 PN10 Lapped Flange Dimensions Dimensions and Approx. Flange Weight Pipe Parameter Flange Dimension Screw Dimension Approx. Weight DN ISO DIN D d6 b k e No. of holes d2 KG/PCS 10 – 14 90 16 14 60 3 4 14 0.61 17.2 – 90 19 14 60 3 4 14 0.6 15 – 20 95 22 14 65 3 4 14 0.67 21.3 – 95 24 14 65 3 4 14 0.66 20 – 25 105 28 14 75 3 4 14 0.82 26.9 – 105 30 14 75 3 4 14 0.81 25 – 30 115 33 16 85 4 4 14 1.12 33.7 – 115 36 16 85 4 4 14 1.1 32 – 38 140 42 16 100 4 4 18 1.63 42.4 – 140 46 16 100 4 4 18 1.6 40 – 44.5 150 50 16 110 4 4 18 1.85 48.3 – 150 54 16 110 4 4 18 1.8 50 – 57 165 62 16 125 5 4 18 2.18 60.3 – 165 65 16 125 5 4 18 2.14 65 76.1 – 185 81 16 145 5 4 18 2.6 80 88.9 – 200 94 18 160 5 8 18 3.17 100 – 108 220 113 18 180 5 8 18 3.67 114.3 – 220 119 18 180 5 8 18 3.51 125 – 133 250 138 18 210 5 8 18 4.53 139.7 – 250 145 18 210 5 8 18 4.32 150 – 159 285 164 18 240 5 8 22 5.6 168.3 – 285 173 18 240 5 8 22 5.26 200 219.1 -…
