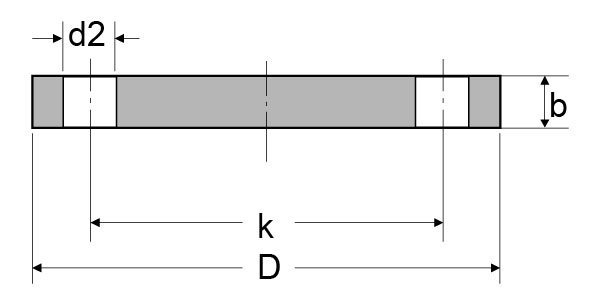

DIN 2527 PN40 Blind Flange Dimensions, Technical Drawings, and Approx. Flange Weight DOWNLOAD DIN 2527 PN40 BLIND FLANGE DIMENSIONS, TECHNICAL DRAWINGS, AND APPROX. FLANGE WEIGHT PDF Get Complete details of DIN Standard Flanges DIN 2527 PN40 Blind Flange Dimensions Dimensions and Approx. Flange Weight Nominal Pipe Size Flange Dimension Screw Parameter Approx. Flange Weight Flanges Dia Thk of Flange Dia of Bolt Circle No. of holes  Dia of Bolt Holes DIN  D  b  k  X d2  KG/PCS 10 90 16 60 4 14 0.72 15 95 16 65 4 14 0.81 20 105 18 75 4 14 1.14 25 115 18 85 4 14 1.38 32 140 18 100 4 18 2.03 40 150 18 110 4 18 2.35 50 165 20 125 4 18 3.2 65 185 22 145 8 18 4.29 80 200 24 160 8 18 5.54 100 235 24 190 8 22 7.6 125 270 26 220 8 26 10.82 150 300 28 250 8 26 14.6 175 350 32 295 12 30 22.04 200 375 34 320 12 30 27.21 250 450 38 385 12 33 44.38 300 515 42 450 16 33 64.17 350 580 46 510 16 36 89.52 400 660 50 585 16 39 126.76 500 755 56 670 20 42 184.63 600 890 62 795 20 48 285.17 700 995 64 900 24 48 368.83 800 1140 70 1030 24 56 528.39 900 1250 76 1140 28 56 690.99 1000 1360 84 1250 28 56 912.42 DIN 2527 PN40 Blind Flange Industries and Applications Widely used in the industries Pumps, Valves, and vessels in manufacturing and food processing. Pipe connections in industrial waterworks. Heat exchangers and heating systems of all sizes. Mining support. Nuclear power systems. Plumbing and mechanical systems. Assemblies in the oil, gas, and petrochemical industries. Fire protection systems….
