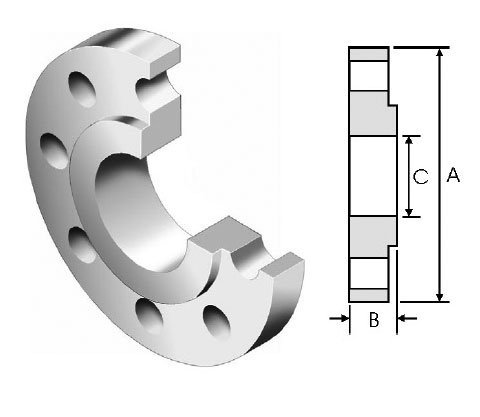

BS 4504 Plate Flange Dimensions and Technical Drawing DOWNLOAD BS 4504 PLATE FLANGE DIMENSIONS AND TECHNICAL DRAWING PDF Get Complete details of BS 4504 Flange Standard BS 4504 Plate Flange Dimensions Dimensions in MM DN PN A mm B mm C mm 10 2.5, 6 75 12 18 10 &16 90 14 25 & 40 90 14 15 2.5 & 6 80 12 22 10 &16 95 14 　 25 & 40 95 14 20 2.5 & 6 90 14 27.5 10 &16 105 16 25 & 40 105 16 25 2.5 & 6 100 14 34.5 10 &16 115 16 25 & 40 115 16 32 2.5 & 6 120 16 43.5 10 &16 140 18 25 & 40 140 18 40 2.5 & 6 130 16 49.5 10 &16 150 18 25 & 40 150 18 50 2.5 & 6 140 16 61.5 10 & 16 165 20 25 & 40 165 20 65 2.5 & 6 160 16 77.5 10 & 16 185 20 25 & 40 185 22 80 2.5 & 6 190 18 90.5 10 &16 200 20 25 & 40 200 24 100 2.5 & 6 210 18 116 10 &16 220 22 25 & 40 235 26 125 2.5 & 6 240 20 141.5 10 & 16 250 22 25 & 40 270 28 150 2.5 & 6 265 20 170.5 10 & 16 285 24 25 & 40 300 30 200 2.5 & 6 320 22 221.5 10 &16 340 24 25 360 32 40 375 36 250 2.5 & 6 375 24 276.5 10 395 26 16 405 29 25 425 35 40 450 42 300 2.5 & 6 440 24 327.5 10 445 26 16 460 32 25 485 38 40 515 48 350 2.5 & 6 490 26 359.5…
