Description

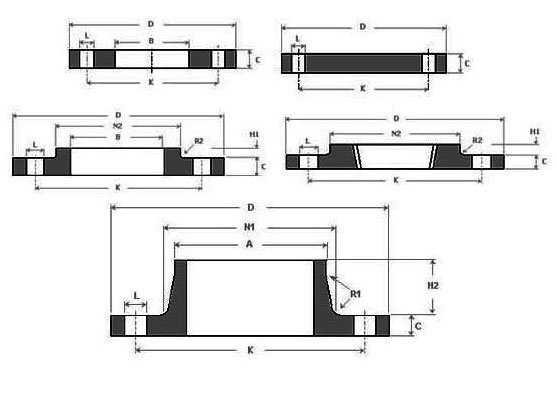

BS 10 Table H Flange Dimensions and Technical Drawing DOWNLOAD BS 10 Table H Flange Dimensions and Technical Drawing PDF BS 10 Table H Flange Dimensions Dimensions in MM Nominal Pipe Sizes Daimeterof Daimeter of Number of Daimeter of Thickness Of NPS Flanges Circle Of Bolt Bolt Bolt 1/2" 114.3 82.6 4 15.9 12.7 3/4" 114.3 82.6 4 15.9 12.7 1" 120.78 87.3 4 15.9 14.3 1 1/4" 133.4 98.4 4 15.9 17.5 1 1/2" 139.7 104.8 4 15.9 17.5 2" 165.1 127.0 4 15.9 19.1 2 1/2" 184.2 146.1 8 15.9 19.1 3" 203.2 165.1 8 15.9 22.2 3 1/2" 215.9 177.8 8 15.9 22.2 4" 228.6 190.5 8 15.9 25.4 5" 279.4 235.0 8 19.1 28.6 6" 304.8 260.4 12 19.1 28.6 7" 336.6 292.1 12 19.1 31.8 8" 368.3 323.9 12 19.1 31.8 9" 406.4 355.6 12 22.2 34.9 10" 431.8 381.0 12 22.2 34.9 12" 489.0 438.2 16 22.2 38.1 14" 552.5 495.3 16 25.4 41.3 16" 609.6 552.5 20 25.4 44.5 18" 673.1 609.6 20 28.6 47.6 20" 736.6 673.1 24 28.6 50.8 24" 850.9 781.1 24 31.8 57.2 BS 10 Table H Flange Industries and Applications Widely used in the industries Pumps, Valves, and vessels in manufacturing and food processing. Pipe connections in industrial waterworks. Heat exchangers and heating systems of all sizes. Mining support. Nuclear power systems. Plumbing and mechanical systems. Assemblies in the oil, gas, and petrochemical industries. Fire protection systems. BS 10 Table H Flange Supply and Export Network List of Cities and Countries A-C D-J K-R S-Z Afghanistan Algeria Angola Argentina Australia Austria Azerbaijan Bahrain Bangladesh Belarus Belgium Bhutan Bolivia Brazil Bulgaria Canada Chile China Colombia Costa Rica Croatia Czech Republic Aberdeen Abu Dhabi Ahmedabad Ahvaz Al Jubail Al Khobar Algiers Ankara Atyrau Bangkok Bengaluru Bhopal Bogota Brisbane Busan Cairo…
