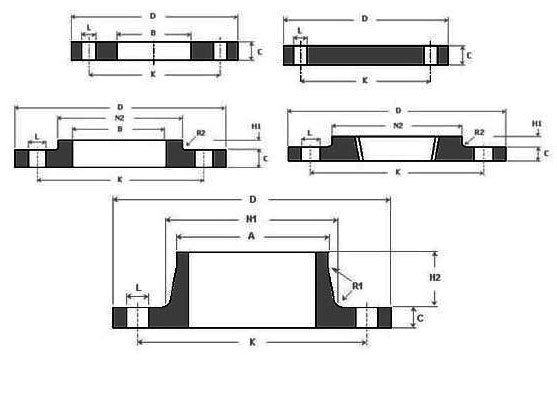

BS 10 Table E Flange Dimensions and Technical Drawing DOWNLOAD BS 10 Table E Flange Dimensions and Technical Drawing PDF BS 10 Table E Flange Dimensions Dimensions in MM NB Sizes In D K L A C N1 N2 B H1 H2 R1 R2 HOLES Inches Millimeter ½” 15 95.3 66.8 14.5 21.3 6.4 27.0 33.3 22.4 9.5 22.2 6.4 1.6 4 ¾” 20 101.6 73.2 14.5 26.7 6.4 33.3 38.1 27.7 11.1 22.2 6.4 1.6 4 1″ 25 114.3 82.6 14.5 33.5 7.2 42.9 47.6 34.6 11.1 22.2 6.4 1.6 4 1 ¼” 32 120.7 87.4 14.5 42.2 7.9 49.2 55.6 43.2 11.1 25.4 6.4 1.6 4 1 ½” 40 133.4 98.6 14.5 48.3 8.7 58.7 61.9 49.5 12.7 28.6 6.4 1.6 4 2″ 50 152.4 114.3 17.5 60.5 9.5 69.9 74.6 62.0 12.7 28.6 6.4 1.6 4 2 ½” 65 165.1 127.0 17.5 73.2 10.3 82.6 90.5 74.7 15.9 31.8 6.4 1.6 4 3″ 80 184.2 146.1 17.5 88.9 11.1 101.6 106.4 90.7 15.9 34.9 6.4 1.6 4 3 ½” 88 203.2 165.1 17.5 101.6 11.9 114.3 119.1 103.4 17.5 34.9 6.4 1.6 4 4″ 100 215.9 177.8 17.5 114.3 12.7 130.2 133.4 116.1 19.1 41.3 9.5 3.2 4 5″ 125 254.0 209.6 17.5 141.2 14.3 152.4 160.3 143.8 19.1 44.5 9.5 3.2 8 6″ 150 279.4 235.0 17.5 168.4 17.5 184.2 185.7 171.7 19.1 47.6 9.5 3.2 8 8″ 200 336.6 292.1 17.5 219.2 19.1 241.3 241.3 221.5 22.2 50.8 9.5 3.2 8 10″ 250 406.4 355.6 22.2 273.1 22.2 292.1 298.5 276.4 27.0 63.5 9.5 3.2 8 12″ 300 457.2 406.4 22.2 323.9 25.4 342.9 349.3 325.9 28.6 69.9 9.5 4.8 12 14″ 350 527.1 469.9 25.4 355.6 28.6 406.4 – 359.2 – 73.0 9.5 4.8 12 16″ 400 577.9 520.7 25.4 406.4 31.8 431.8 -…
