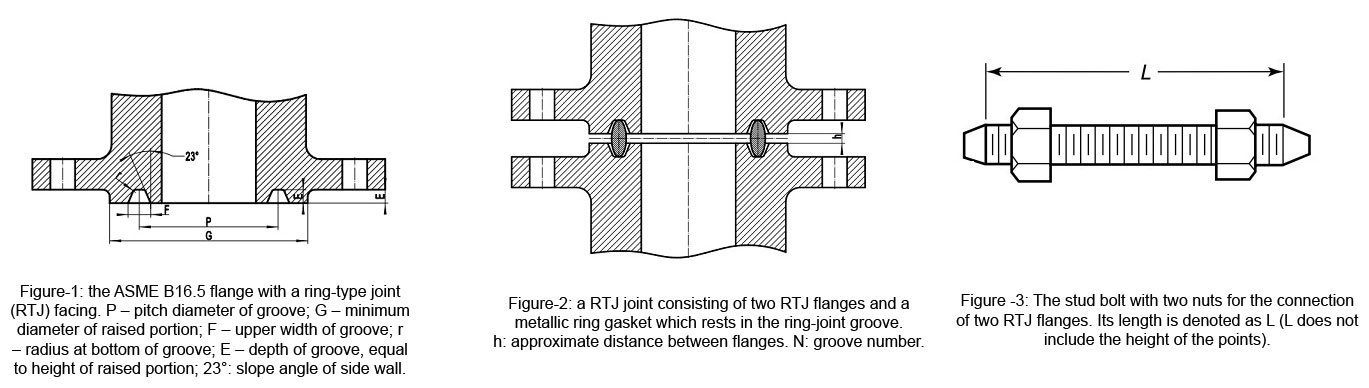

ASME B16.5 Class 300 RTJ Facing Flanges Dimensions and Technical Drawings DOWNLOAD ASME B16.5 CLASS 300 RTJ FACING FLANGES DIMENSIONS AND TECHNICAL DRAWINGS PDF Get Complete details of ANSI/ASME/ASA B16.5 Standard Flange 300# B16.5 Flanges Dimensions RTJ Facing Dimensions in MM NPS Groove No. P E F 1/2 11 34.14 5.54 7.14 3/4 13 42.88 6.35 8.74 1 16 50.80 6.35 8.74 1-1/4 18 60.33 6.35 8.74 1-1/2 20 68.27 6.35 8.74 2 23 82.55 7.92 11.91 2-1/2 26 101.60 7.92 11.91 3 30 117.48 7.92 11.91 3-1/2 34 131.78 7.92 11.91 4 37 149.23 7.92 11.91 5 41 180.98 7.92 11.91 6 45 211.12 7.92 11.91 8 49 269.88 7.92 11.91 10 53 323.85 7.92 11.91 12 57 381.00 7.92 11.91 14 61 419.10 7.92 11.91 16 65 469.90 7.92 11.91 18 69 533.40 7.92 11.91 20 73 584.20 9.53 13.49 22 81 635.00 11.13 15.09 24 77 629.15 11.13 16.66 NPS r G h L 1/2 0.8 51.0 3 75 3/4 0.8 63.5 4 90 1 0.8 70.0 4 90 1-1/4 0.8 79.5 4 95 1-1/2 0.8 90.5 4 100 2 0.8 108 6 100 2-1/2 0.8 127 6 115 3 0.8 146 6 120 3-1/2 0.8 159 6 125 4 0.8 175 6 125 5 0.8 210 6 135 6 0.8 241 6 140 8 0.8 302 6 150 10 0.8 356 6 170 12 0.8 413 6 185 14 0.8 457 6 190 16 0.8 508 6 205 18 0.8 575 6 210 20 1.5 635 6 220 22 1.5 686 6 255 24 1.5 749 6 255 ASME B16.5 Class 300 Flanges Industries and Applications Widely used in the industries Pumps, Valves, and vessels in manufacturing and food processing. Pipe connections in industrial waterworks. Heat exchangers and heating systems of all sizes. Mining support. Nuclear…
