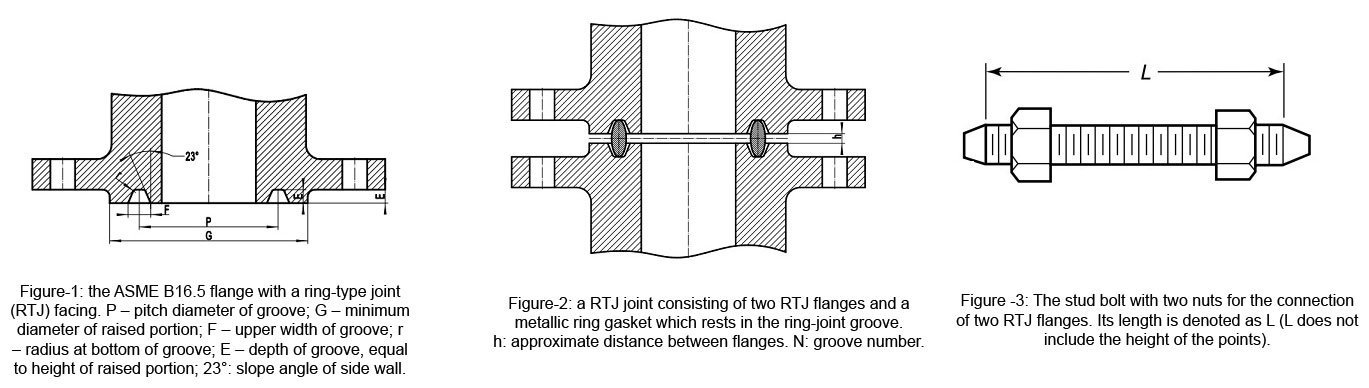

ASME B16.5 Class 2500 RTJ Facing Flanges Dimensions and Technical Drawings DOWNLOAD ASME B16.5 CLASS 2500 RTJ FACING FLANGES DIMENSIONS AND TECHNICAL DRAWINGS PDF Get Complete details of ANSI/ASME/ASA B16.5 Standard Flange 2500# B16.5 Flanges Dimensions RTJ Facing Dimensions in MM NPS Groove No. P E F 1/2 13 42.88 6.35 8.74 3/4 16 50.80 6.35 8.74 1 18 60.33 6.35 8.74 1-1/4 21 72.23 7.92 11.91 1-1/2 23 82.55 7.92 11.91 2 26 101.60 7.92 11.91 2-1/2 28 111.13 9.53 13.49 3 32 127.00 9.53 13.49 4 38 157.18 11.13 16.66 5 42 190.50 12.70 19.84 6 47 228.60 12.70 19.84 8 51 279.40 14.27 23.01 10 55 342.90 17.48 30.18 12 60 406.40 17.48 33.32 NPS r G h L 1/2 0.8 65.0 4 120 3/4 0.8 73.0 4 125 1 0.8 82.5 4 140 1-1/4 0.8 102 3 150 1-1/2 0.8 114 3 170 2 0.8 133 3 180 2-1/2 1.5 149 3 205 3 1.5 168 3 230 4 1.5 203 4 260 5 1.5 241 4 310 6 1.5 279 4 355 8 1.5 340 5 395 10 2.4 425 6 510 12 2.4 495 8 560 ASME B16.5 Class 2500 Flanges Industries and Applications Widely used in the industries Pumps, Valves, and vessels in manufacturing and food processing. Pipe connections in industrial waterworks. Heat exchangers and heating systems of all sizes. Mining support. Nuclear power systems. Plumbing and mechanical systems. Assemblies in the oil, gas, and petrochemical industries. Fire protection systems. ASME B16.5 Class 2500 Flanges Supply and Export Network List of Cities and Countries A-C D-J K-R S-Z Afghanistan Algeria Angola Argentina Australia Austria Azerbaijan Bahrain Bangladesh Belarus Belgium Bhutan Bolivia Brazil Bulgaria Canada Chile China Colombia Costa Rica Croatia Czech Republic Aberdeen Abu Dhabi Ahmedabad Ahvaz Al Jubail Al Khobar Algiers Ankara…
