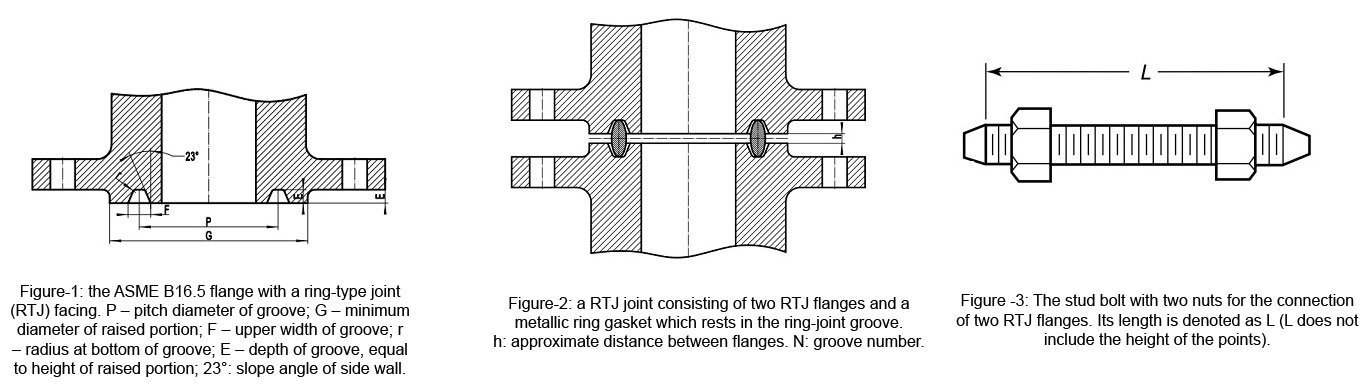

ASME B16.5 Class 1500 RTJ Facing Flanges Dimensions and Technical Drawings DOWNLOAD ASME B16.5 CLASS 1500 RTJ FACING FLANGES DIMENSIONS AND TECHNICAL DRAWINGS PDF Get Complete details of ANSI/ASME/ASA B16.5 Standard Flange 1500# B16.5 Flanges Dimensions RTJ Facing Dimensions in MM NPS Groove No. P E F 1/2 12 39.67 6.35 8.74 3/4 14 44.45 6.35 8.74 1 16 50.80 6.35 8.74 1-1/4 18 60.33 6.35 8.74 1-1/2 20 68.27 6.35 8.74 2 24 95.25 7.92 11.91 2-1/2 27 107.95 7.92 11.91 3 35 136.53 7.92 11.91 4 39 161.93 7.92 11.91 5 44 193.68 7.92 11.91 6 46 211.14 9.53 13.49 8 50 269.88 11.13 16.66 10 54 323.85 11.13 16.66 12 58 381.00 14.27 23.01 14 63 419.10 15.88 26.97 16 67 469.90 17.48 30.18 18 71 533.40 17.48 30.18 20 75 584.20 17.48 33.32 24 79 692.15 20.62 36.53 NPS r G h L 1/2 0.8 60.5 4 110 3/4 0.8 66.5 4 115 1 0.8 71.5 4 125 1-1/4 0.8 81.0 4 125 1-1/2 0.8 92.0 4 140 2 0.8 124 3 145 2-1/2 0.8 137 3 160 3 0.8 168 3 180 4 0.8 194 3 195 5 0.8 229 3 250 6 1.5 248 3 265 8 1.5 318 4 300 10 2.4 371 4 345 12 2.4 438 5 385 14 2.4 489 6 425 16 2.4 546 8 470 18 2.4 613 8 525 20 2.4 673 10 565 24 2.4 794 11 650 ASME B16.5 Class 1500 Flanges Industries and Applications Widely used in the industries Pumps, Valves, and vessels in manufacturing and food processing. Pipe connections in industrial waterworks. Heat exchangers and heating systems of all sizes. Mining support. Nuclear power systems. Plumbing and mechanical systems. Assemblies in the oil, gas, and petrochemical industries. Fire protection systems. ASME B16.5 Class…
