Description

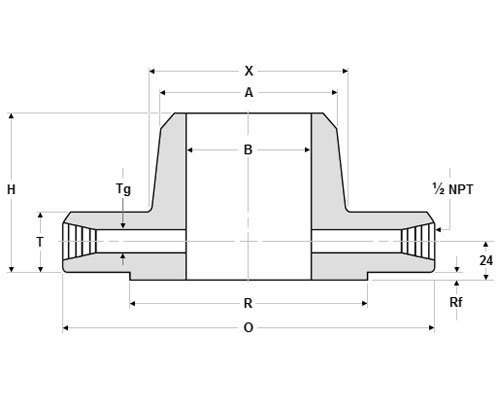

ASME B16.36 Class 300 Orifice Weld Neck RF Flanges Dimensions and Technical Drawings DOWNLOAD ASME B16.36 CLASS 300 ORIFICE WELD NECK RF FLANGES DIMENSIONS AND TECHNICAL DRAWINGS PDF Get Complete details of ANSI/ASME B16.36 Standard Flange 300# B16.36 Flanges Dimensions B16.36 Dimensions in MM NPS HUB DIA DIA RF OUT SIDE DIA MIN THK FLG HGT FLG HUB DIA DIA OF TAB A R O T H X Tg 1 33.4 50.8 125 36.6 81 54 6.4 1½ 48.3 73.0 155 36.6 84 70 6.4 2 60.3 92.1 165 36.6 84 84 6.4 2½ 73.0 104.8 190 36.6 87 100 6.4 3 88.9 127.0 210 36.6 87 117 9.5 4 114.3 157.2 255 36.6 90 146 12.7 6 168.3 215.9 320 36.6 98 206 12.7 8 219.1 269.9 380 39.7 110 260 12.7 10 273.0 323.8 445 46.1 116 321 12.7 12 323.8 381.0 520 49.3 129 375 12.7 14 355.6 412.8 585 52.4 141 425 12.7 16 406.4 469.9 650 55.6 144 483 12.7 18 457.0 533.4 710 58.8 157 533 12.7 20 508.0 584.2 775 62.0 160 587 12.7 24 610.0 692.2 915 68.3 167 702 12.7 NPS BOLT CIRCLE NO OF BOLTS DIA OF HOLES DIA STUD BOLTS STUD BOLT LENGTH 1 88.9 4 11/16 5/8 125 1½ 114.3 4 13/16 3/4 135 2 127.0 8 11/16 5/8 125 2½ 149.2 8 13/16 3/4 135 3 168.3 8 13/16 3/4 135 4 200.0 8 13/16 3/4 135 6 269.9 12 7/8 3/4 135 8 330.2 12 1 7/8 145 10 387.4 16 1.1/8 1 165 12 450.8 16 1¼ 1.1/8 180 14 514.4 20 1¼ 1.1/8 185 16 571.5 20 1.3/8 1¼ 195 18 628.6 24 1.3/8 1¼ 205 20 685.8 24 1.3/8 1¼ 215 24 812.8 24 1.5/8 1½ 240 General Note: Height of Raised Face…
