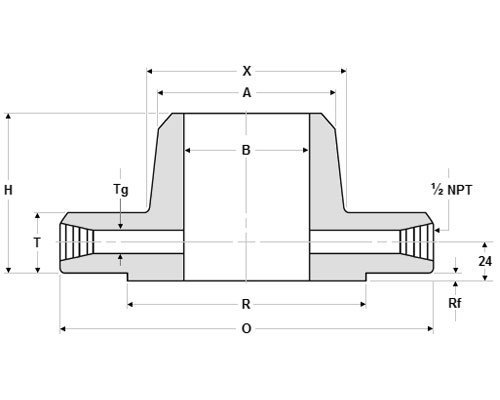

ASME B16.36 Class 1500 Orifice Weld Neck RTJ Flanges Dimensions and Technical Drawings DOWNLOAD ASME B16.36 CLASS 1500 ORIFICE WELD NECK RTJ FLANGES DIMENSIONS AND TECHNICAL DRAWINGS PDF Get Complete details of ANSI/ASME B16.36 Standard Flange 1500# B16.36 Flanges Dimensions B16.36 Dimensions in MM NPS DIA RF OUT SIDE DIA MIN THK FLG HGT FLG HUB DIA HUB DIA DIA OF TAB R O T H X A Tg 1 50.8 150 38.1 83 52 33.5 6.4 1½ 73.0 180 38.1 89 70 48.3 6.4 2 92.1 215 38.1 102 105 60.3 6.4 2½ 104.8 245 41.3 105 124 73.0 6.4 3 127.0 265 47.7 117 133 88.9 9.5 4 157.2 310 54.0 124 162 114.3 12.7 6 215.9 395 82.6 171 229 168.3 12.7 8 269.9 485 92.1 213 292 219.1 12.7 10 323.8 585 108.0 254 368 273.0 12.7 12 381.0 675 123.9 283 451 323.8 12.7 14 412.8 750 133.4 298 495 355.6 12.7 16 469.9 825 146.1 311 552 406.4 12.7 18 533.4 915 162.0 327 597 457.2 12.7 20 584.2 985 177.8 356 641 508.0 12.7 24 692.2 1170 203.2 406 762 609.6 12.7 NPS BOLT CIRCLE NO OF BOLTS DIA OF HOLES DIA STUD BOLTS STUD BOLT LENGTH 1 101.6 4 1 7/8 150 1½ 123.8 4 1.1/8 1 160 2 165.1 8 1 7/8 150 2½ 190.5 8 1.1/8 1 165 3 203.2 8 1¼ 1.1/8 185 4 241.3 8 1.3/8 1¼ 205 6 317.5 12 1½ 1.3/8 265 8 393.7 12 1¾ 1.5/8 300 10 482.6 12 2 1.7/8 345 12 571.6 16 2.1/8 2 380 14 635.0 16 2 3/8 2¼ 415 16 704.8 16 2 5/8 2½ 450 18 774.7 16 2 7/8 2¾ 500 20 831.8 16 3.1/8 3 545 24 990.6 16 3.5/8 3½ 620 General Note: Height…
