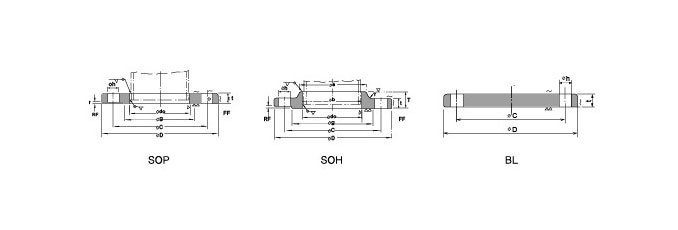

JIS B2220 5K SOP SOH BL Flange Dimensions, Technical Drawings, and Approx. Flange Weight DOWNLOAD JIS B2220 5K SOP SOH BL FLANGE DIMENSIONS, TECHNICAL DRAWINGS, AND APPROX. FLANGE WEIGHT PDF JIS B2220 5K SOP SOH BL Flange Dimensions Dimensions and Approx. Flange Weight Nominal Outside Inside Outside Sectional Dimensions of Flange Bolt Hole Nominal Approx. Dia. of Dia. of Dia. of Dia. of t T Dia. of Hub r Dia. of Dia. of Bolt. Number Hole Bolt Weight Flange Steel Flange Flange a b Face Raised Face Circle of Bolt Dia. Size (kg) Pipe do D f g Dia Holes h SOP BL SOH 10 17.3 17.8 75.0 9 – – – – 1 39 55 4 12 M10 0.26 0.28 – 15 21.7 22.2 80.0 9 – – – – 1 44 60 4 12 M10 0.30 0.32 – 20 27.2 27.7 85.0 10 – – – – 1 49 65 4 12 M10 0.36 0.41 – 25 34.0 34.5 95.0 10 – – – – 1 59 75 4 12 M10 0.45 0.52 – 32 42.7 43.2 115.0 12 – – – – 2 70 90 4 15 M12 0.77 0.91 – 40 48.6 49.1 120.0 12 – – – – 2 75 95 4 15 M12 0.82 1.00 – 50 60.5 61.1 130.0 14 – – – – 2 85 105 4 15 M12 1.06 1.38 – 65 76.3 77.1 155.0 14 – – – – 2 110 130 4 15 M12 1.48 2.00 – 80 89.1 90.0 180.0 14 – – – – 2 121 145 4 19 M16 1.97 2.67 – (90) 101.6 102.6 190.0 14 – – – – 2 131 155 4 19 M16 2.08 2.99 – 100 114.3 115.4 200.0 16 – – – – 2 141 165 8 19 M16 2.35…
