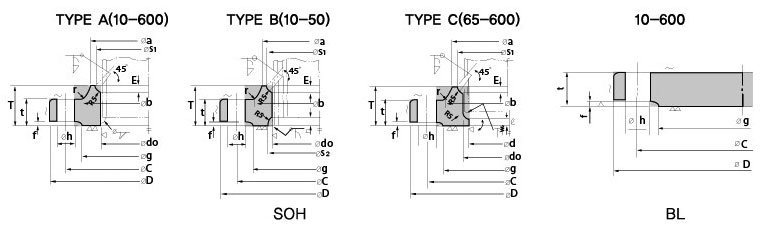

JIS B2220 30K SOH BL Flange Dimensions, Technical Drawings, and Approx. Flange Weight DOWNLOAD JIS B2220 30K SOH BL FLANGE DIMENSIONS, TECHNICAL DRAWINGS, AND APPROX. FLANGE WEIGHT PDF JIS B2220 30K SOH BL Flange Dimensions Dimensions and Approx. Flange Weight Nominal Outside Inside Outside Sectional Dimensions of Flange Bolt Hole Nominal Approx. Dia. of Dia. of Dia. of Dia. of t T Dia. of Hub r Dia. of Dia. of Bolt. Number Hole Bolt Weight Flange Steel Flange Flange a b Face Raised Face Circle of Bolt Dia. Size (kg) 　 Pipe do D f g Dia Holes h 　 SOH(A) SOH(B.C) BL 10 17.3 17.8 110 16 24 30 34 4 1 52 75 4 19 M16 1 1 1 15 21.7 22.2 115 18 26 36 40 5 1 55 80 4 19 M16 1.24 1.22 1.25 20 27.2 27.7 120 18 28 42 46 5 1 60 85 4 19 M16 1.36 1.34 1.38 25 34 34.5 130 20 30 50 54 5 1 70 95 4 19 M16 1.77 1.75 1.84 32 42.7 43.2 140 22 32 60 64 6 2 80 105 4 19 M16 2.17 2.15 2.32 40 48.6 49.1 160 22 34 66 70 6 2 90 120 4 23 M20 2.82 2.79 3 50 60.5 61.1 165 22 36 82 86 6 2 105 130 8 19 M16 2.89 2.86 3.14 65 76.3 77.1 200 26 40 102 106 8 2 130 160 8 23 M20 4.88 4.96 5.5 80 89.1 90 210 28 44 115 121 8 2 140 170 8 23 M20 5.7 5.8 6.63 90 101.6 102.6 230 30 46 128 134 8 2 150 185 8 25 M22 7.13 7.25 8.55 100 114.3 115.4 240 32 48 141 147 8 2 160 195 8 25 M22 8.01 8.16…
