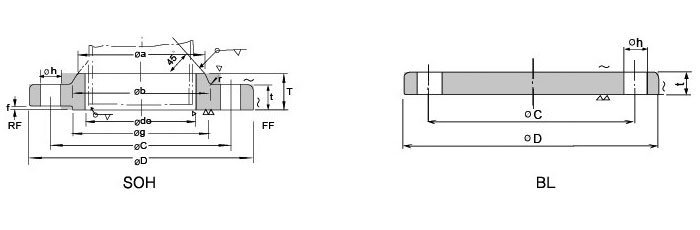

JIS B2220 16K SOH BL Flange Dimensions, Technical Drawings, and Approx. Flange Weight DOWNLOAD JIS B2220 16K SOH BL FLANGE DIMENSIONS, TECHNICAL DRAWINGS, AND APPROX. FLANGE WEIGHT PDF JIS B2220 16K SOH BL Flange Dimensions Dimensions and Approx. Flange Weight Nominal Outside Inside Outside Sectional Dimensions of Flange Bolt Hole Nominal Approx. Dia. of Dia. of Dia. of Dia. of t T Dia. of Hub r Dia. of Dia. of Bolt. Number Hole Bolt Weight Flange Steel Flange Flange a b Face Raised Face Circle of Bolt Dia. Size (kg) 　 Pipe do D f g Dia Holes h 　 BL SOH 10 17.3 17.8 90 12 16 26 28 4 1 46 65 4 15 M12 0.53 0.52 15 21.7 22.2 95 12 16 30 32 4 1 51 70 4 15 M12 0.6 0.58 20 27.2 27.7 100 14 20 38 42 4 1 56 75 4 15 M12 0.79 0.75 25 34 34.5 125 14 20 46 50 4 1 67 90 4 19 M16 1.22 1.16 32 42.7 43.2 135 16 22 56 60 5 2 76 100 4 19 M16 1.66 1.53 40 48.6 49.1 140 16 24 62 66 5 2 81 105 4 19 M16 1.79 1.64 50 60.5 61.1 155 16 24 76 80 5 2 96 120 8 19 M16 2.09 1.83 65 76.3 77.1 175 18 26 94 98 5 2 116 140 8 19 M16 3.08 2.58 80 89.1 90 200 20 28 108 112 6 2 132 160 8 23 M20 4.41 3.61 -90 101.6 102.6 210 20 30 120 124 6 2 145 170 8 23 M20 4.92 3.89 100 114.3 115.4 225 22 34 134 138 6 2 160 185 8 23 M20 6.29 4.87 125 139.8 141.2 270 22 34 164 170 6 2 195…
