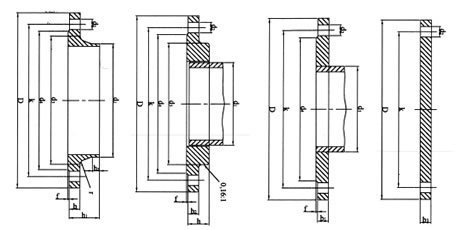

SABS 1123 Class 600 Welding On Flange Dimensions, Weight, and Technical Drawing DOWNLOAD SABS 1123 Class 600 Welding On Flange Dimensions, Weight, and Technical Drawing PDF Get Complete details of SANS / SABS 1123 Flanges SABS 1123 Class 600 Welding On Flange Dimensions Flange Dimensions & Approximate Masses Nominal pressure 600 kPa     600/2 = Table 4    600/4 = Table 6    600/3 = Table 5    600/8 = Table 8 NB Pipe O.D. d1 Flange Raised Face Bolt Drilling Neck Boss D b b1 b2 b3 h h1 d4 f No. d2 k d3 h2 r   d5 10 17.2 75 8 10 8 10 16 28 35 2 M10  4 11 50 26 6 4 25 15 21.3 80 8 10 8 10 16 30 40 2 M10  4 11 55 30 6 4 30 20 26.9 90 8 10 8 10 18 32 50 2 M10  4 11 65 38 6 4 40 25 33.7 100 8 10 8 10 18 35 60 2 M10  4 11 75 42 6 4 50 32 42.4 120 8 10 8 10 20 35 70 2 M12  4 14 90 55 6 6 60 40 48.3 130 8 10 8 10 20 38 80 3 M12  4 14 100 62 7 6 70 50 60.3 140 8 10 8 10 22 38 90 3 M12  4 14 110 74 8 6 80 65 76.1 160 8 10 8 10 26 38 110 3 M12  4 14 130 88 9 6 100 80 88.9 190 10 10 10 10 28 42 128 3 M16  4 18 150 102 10 8 110 100 114.3 210 10 10 10 10 34 45 148 3 M16  4 18 170 130 10 8 130 *125  139.7 240 13 12 13 12 39 48 178 3 M16  8 18…
