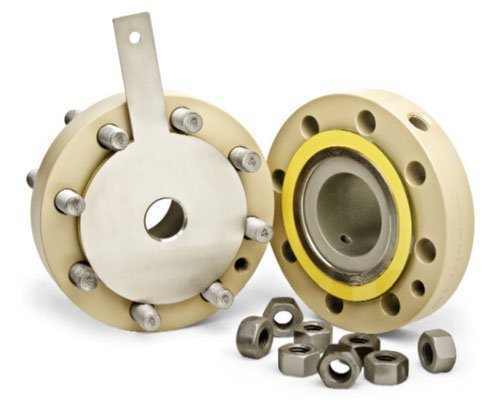

Specialized Orifice Union Flange Manufacturer, ASME B16.36 Orifice Flange Union Dimensions. Marcel Piping Projects Supply PVT LTD is dominant Manufacturers, Stockists, Suppliers, and Exporters of Orifice Plate Flange Union in India. Orifice Union Flange provide an provident method of measuring inflow both liquid and gas services. Flanges are machined in accord with the requirements of ANSI B 16.36. Raised face flanges meet the needs of ANSI B 16.5 for raised face range. Our standard pressure valve, bore tolerance and surface end are each in accordance with the requirement of both API 14.3 and ISO 5167. Full compliance with these further exacting specifications can be supplied if demanded. This is achieved with the addition of precisely custom-made dowel pin holes in each flange to assure maximum concentrically. The Orifice Union Flange has no moving factor and 4 the Differential Pressure Tap are located on the ASME Flanges. If needed this Orifice Flanges Assembly can be used as a Pressure Reducing units by replacing the “ 520” Paddle type Orifice Plate for a Restriction type Plate. Orifice union flange is designed in different style in order to match them with the different style of orifice plate available. There are 4 different types of Orifice Union flange namely Weld Neck Orifice Union flange, Slip On Orifice Union flange, Threaded Orifice Union flange, and Socket Weld Orifice Union flange. We are one of the largest exporters of Orifice Flange Unions in USA, UK, Qatar, Mexico, Nigeria, Saudi Arabia, Kuwait, Iran, Kazakhstan, Bahrain, Vietnam, Indonesia, Norway, Ghana, Colombia, Azerbaijan, Libya at market leading prices. Orifice Union Flange Manufacturer in Mumbai, India Orifice Union Flange Supplier in Mumbai, India We are ISO Certified Manufacturer and Stockist of Orifice Union Flange in Stainless Steel, Carbon Steel, Mild Steel, Alloy Steel, Duplex Steel, Super Duplex Steel, Hastelloy, Monel,…
