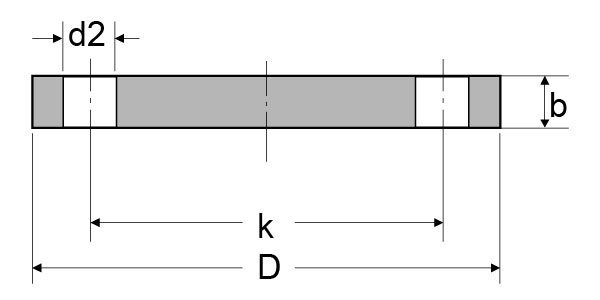

DIN 2527 PN64 Blind Flange Dimensions, Technical Drawings, and Approx. Flange Weight DOWNLOAD DIN 2527 PN64 BLIND FLANGE DIMENSIONS, TECHNICAL DRAWINGS, AND APPROX. FLANGE WEIGHT PDF Get Complete details of DIN Standard Flanges DIN 2527 PN64 Blind Flange Dimensions Dimensions and Approx. Flange Weight Nominal Pipe Size Flange Dimension Screw Parameter Approx. Flange Weight Flanges Dia Thk of Flange Dia of Bolt Circle No. of holes  Dia of Bolt Holes DIN  D  b  k  X d2  KG/PCS 10 20 70 40 4 14 1.04 15 20 75 45 4 14 1.16 20 24 100 68 4 18 2.54 25 24 110 78 4 22 3.07 32 26 125 88 4 22 3.97 40 26 135 102 4 22 4.51 50 26 160 122 4 22 5.69 65 28 170 138 8 22 6.88 80 30 200 162 8 26 9.99 100 34 240 188 8 30 15.91 125 36 280 218 8 33 23.32 150 40 310 260 8 33 30.35 175 42 345 285 12 36 39.17 200 46 400 345 12 38 56.64 250 52 460 410 12 36 81.14 300 56 525 465 16 39 112.95 350 60 585 535 16 42 152.3 DIN 2527 PN64 Blind Flange Industries and Applications Widely used in the industries Pumps, Valves, and vessels in manufacturing and food processing. Pipe connections in industrial waterworks. Heat exchangers and heating systems of all sizes. Mining support. Nuclear power systems. Plumbing and mechanical systems. Assemblies in the oil, gas, and petrochemical industries. Fire protection systems. DIN 2527 PN64 Blind Flange Supply and Export Network List of Cities and Countries A-C D-J K-R S-Z Afghanistan Algeria Angola Argentina Australia Austria Azerbaijan Bahrain Bangladesh Belarus Belgium Bhutan Bolivia Brazil Bulgaria Canada Chile China Colombia Costa Rica Croatia Czech Republic Aberdeen Abu Dhabi Ahmedabad Ahvaz Al Jubail…
