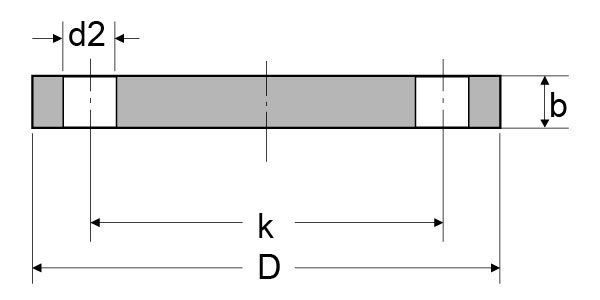

DIN 2527 PN16 Blind Flange Dimensions, Technical Drawings, and Approx. Flange Weight DOWNLOAD DIN 2527 PN16 BLIND FLANGE DIMENSIONS, TECHNICAL DRAWINGS, AND APPROX. FLANGE WEIGHT PDF Get Complete details of DIN Standard Flanges DIN 2527 PN16 Blind Flange Dimensions Dimensions and Approx. Flange Weight Nominal Pipe Size Flange Dimension Screw Parameter Approx. Flange Weight Flanges Dia Thk of Flange Dia of Bolt Circle No. of holes  Dia of Bolt Holes DIN  D  b  k  X d2  KG/PCS 10 90 14 60 4 14 0.63 15 95 14 65 4 14 0.71 20 105 16 75 4 14 1.01 25 115 16 85 4 14 1.23 32 140 16 100 4 18 1.81 40 150 16 110 4 18 2.09 50 165 18 125 4 18 2.88 65 185 18 145 4 18 3.65 80 200 20 160 8 18 4.61 100 220 20 180 8 18 5.65 125 250 22 210 8 18 8.13 150 285 22 240 8 22 10.49 175 315 24 270 8 22 14.11 200 340 24 295 12 22 16.26 250 405 26 355 12 26 24.99 300 460 28 410 12 26 35.13 350 520 30 470 16 26 48.01 400 580 32 525 16 30 83.53 500 715 36 650 20 33 108.63 600 780 38 770 20 36 136.47 700 895 40 840 24 36 189.87 800 1015 44 950 24 39 269.57 900 1115 48 1050 28 39 355.31 1000 1230 52 1170 28 42 469.2 DIN 2527 PN16 Blind Flange Industries and Applications Widely used in the industries Pumps, Valves, and vessels in manufacturing and food processing. Pipe connections in industrial waterworks. Heat exchangers and heating systems of all sizes. Mining support. Nuclear power systems. Plumbing and mechanical systems. Assemblies in the oil, gas, and petrochemical industries. Fire protection systems….
